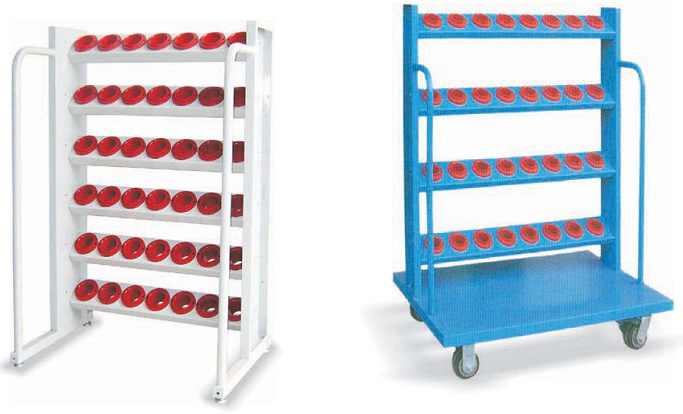

單斜刀具架
單斜刀具架是一種簡易型存放刀具的工位器具。可用于刀具庫和CNC數控加工設備邊上，方便刀具的調用。適用于各類機械加工工廠。單斜刀具架種類多、規格全，還可根據客戶需求加裝腳輪，方便刀具架的移動。
|
| 型號 |
規格尺寸 |
層數 |
刀柄型號 |
單層存刀數量 |
存刀總數 |
| 4TH10 |
890×580×1300 |
6 |
ISO30 |
8 |
48 |
| 4TH11 |
890×580×1300 |
6 |
ISO40 |
8 |
48 |
| 4TH12 |
890×580×1300 |
6 |
ISO50 |
7 |
42 |
| 4TH13 |
890×580×1300 |
6 |
ISO60 |
5 |
30 |
| 4TH14 |
890×580×1300 |
6 |
HSK40 |
8 |
48 |
| 4TH15 |
890×580×1300 |
6 |
HSK63 |
8 |
48 |
| 4TH16 |
890×580×1300 |
6 |
HSK80 |
7 |
42 |
| 4TH17 |
890×580×1300 |
6 |
HSK100 |
6 |
36 |
| 4TI10 |
890×580×1750 |
8 |
ISO30 |
8 |
64 |
| 4TI11 |
890×580×1750 |
8 |
ISO40 |
8 |
64 |
| 4TI12 |
890×580×1750 |
8 |
ISO50 |
7 |
56 |
| 4TI13 |
890×580×1750 |
8 |
ISO60 |
5 |
40 |
| 4TI14 |
890×580×1750 |
8 |
HSK40 |
8 |
64 |
| 4TI15 |
890×580×1750 |
8 |
HSK63 |
8 |
64 |
| 4TI16 |
890×580×1750 |
8 |
HSK80 |
7 |
56 |
| 4TI17 |
890×580×1750 |
8 |
HSK100 |
6 |
48 |
| 4TZ10 |
670×530×1100 |
5 |
ISO30 |
6 |
30 |
| 4TZ11 |
670×530×1100 |
5 |
ISO40 |
6 |
30 |
| 4TZ12 |
670×530×1100 |
5 |
ISO50 |
4 |
20 |
| 4TZ13 |
670×530×1100 |
5 |
ISO60 |
3 |
15 |
| 4TZ14 |
670×530×1100 |
5 |
HSK40 |
7 |
35 |
| 4TZ15 |
670×530×1100 |
5 |
HSK63 |
6 |
30 |
| 4TZ16 |
670×530×1100 |
5 |
HSK80 |
5 |
25 |
| 4TZ17 |
670×530×1100 |
5 |
HSK100 |
4 |
20 |
|
|
